Boiling Point (1 atm): -46.7°C (-52.1°F)

Critical Temperature: 70.9°C (159.6°F)

Critical Pressure: 3.79 MPa (550 psia)

Liquid Density (25°C): ~1,040 kg/m³

Vapor Density (air=1): ~3.5

ODP (Ozone Depletion): 0

GWP (Global Warming): 3,985 (IPCC AR5)

Flammability: A1 - Non-flammable (R125 fully suppresses R143a's flammability)

Glide: 0°C (Azeotropic) - Behaves identically to a single-component refrigerant. No composition shift during phase change.

Capacity: High volumetric cooling capacity, suitable for low-temperature applications.

Efficiency: Similar or slightly better than R502/R404A.

Operating Pressure: Similar to R502/R404A.

Discharge Temperature: Lower than R502, beneficial for compressor life.

Temperature Range: Optimized for low and medium-temperature commercial refrigeration.

Lubricant: Polyol Ester (POE) Oil exclusively.

Seal Materials: Compatible with HNBR, EPDM, Neoprene.

Metals: Compatible with standard metals.

Charging Method: Can be charged as liquid or vapor with no composition shift.

Leak Detection: Requires electronic leak detectors.

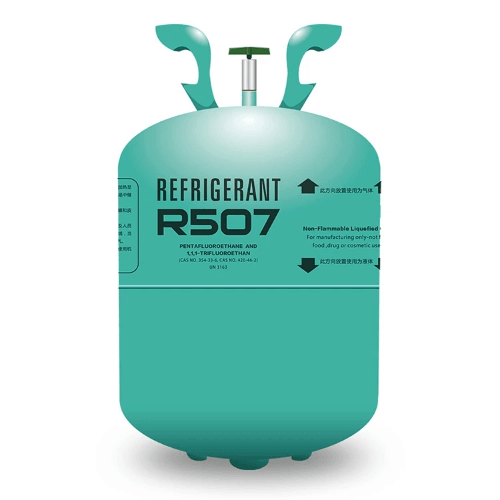

Disposable Cylinders: 10kg, 25kg, and 50kg sizes with color-coded labels (typically light blue for R507)

Returnable Cylinders: 100kg, 500kg, and 1000kg sizes for commercial users

ISO Containers: Bulk shipments for large industrial customers

Store in a cool, dry, well-ventilated area away from direct sunlight

Keep away from heat sources, open flames, and ignition sources

Storage temperature should not exceed 52°C (125°F)

Cylinders should be stored upright and secured to prevent tipping

Keep valve protection caps in place when not in use

Store away from oxidizing materials and corrosive environments

Classified as UN1078, Fluorinated hydrocarbons, n.o.s. (R125 + R143a)

Proper shipping name: "Refrigerant gas R507"

Hazard class: 2.2 (Non-flammable, non-toxic gas)

Transport in upright position with valves protected

Comply with local and international regulations (DOT, ADR, IATA)

Ensure adequate ventilation during transportation
